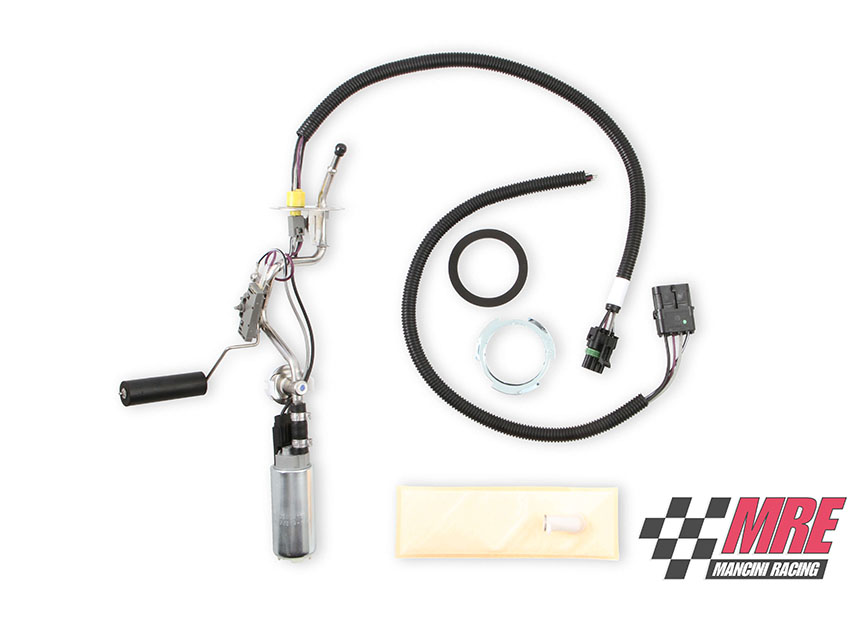

This 1970-1974 Dodge/Plymouth E Body Muscle Car EFI Fuel Pump modules are designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank.
You can even retain the factory fuel hard line, just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley
Application
1970-1974 Dodge Challenger
1970-1974 Plymouth Barracuda
Spec’s:
Free Flow LPH: 255
Fuel Sending Unit Ohms: 73-10 Ohms
Fuel Type: Gasoline
Inlet Diameter (in): 5/16"
Make: Dodge/Plymouth
Model: E Body
Product Type: Fuel Pump Module
Vent Size: N/A
Warranty: Limited 90 Day
• This in-tank fuel pump module is a high-pressure unit that flows 255 liters per hour (LPH) and is capable of supporting EFI (electronic fuel injection) engines producing up to 550 horsepower
• Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator • A pre-calibrated fuel-level sending unit (73-10 ohm) designed to work with the factory fuel gauge for this application is included
• Module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminants
HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.
