PRODUCT DESCRIPTION
Fits: 1970-74 E Body

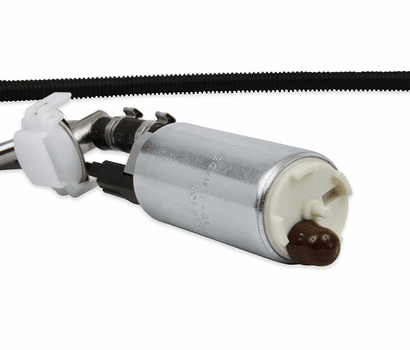

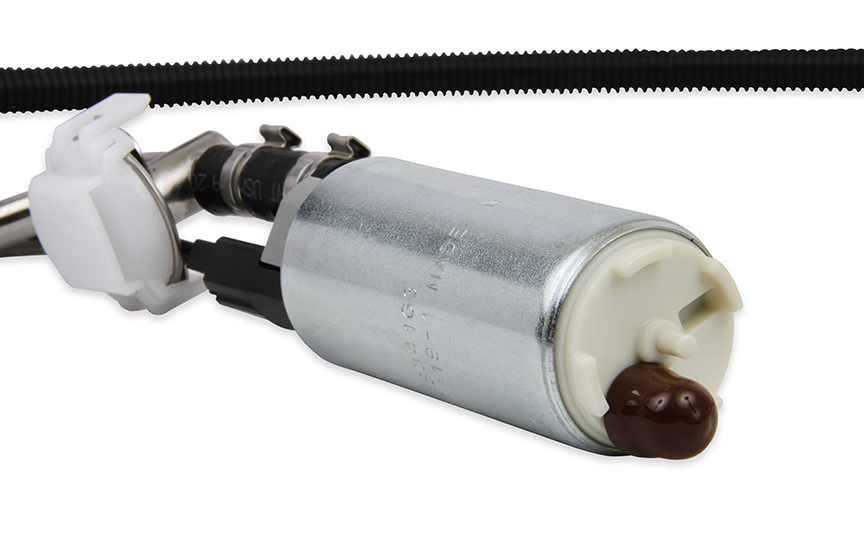

• This in-tank fuel pump module is a high-pressure unit that flows 350 liters per hour (LPH) and is capable of supporting EFI (electronic fuel injection) engines producing up to 750 horsepower

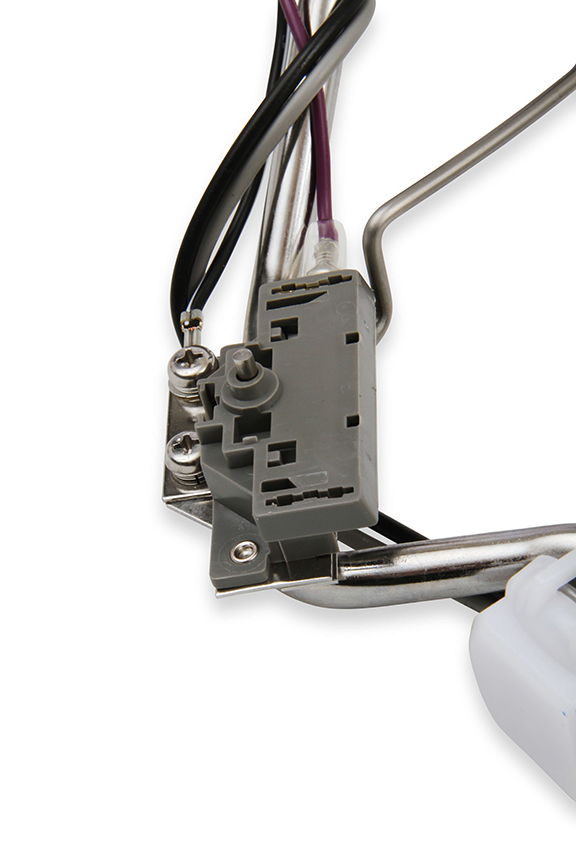

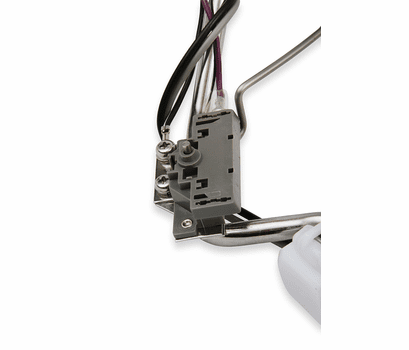

• Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator • A pre-calibrated fuel-level sending unit (73-10 ohm) designed to work with the factory fuel gauge for this application is included

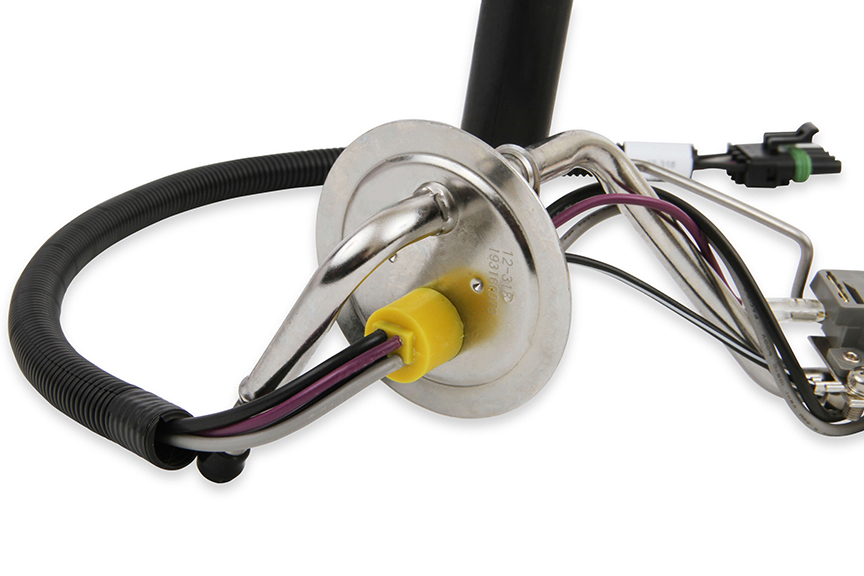

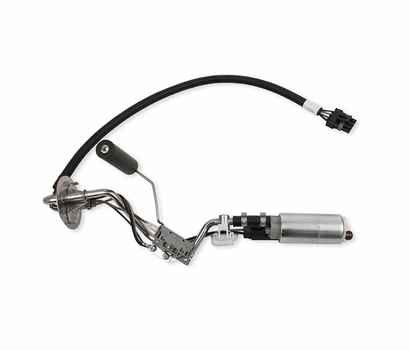

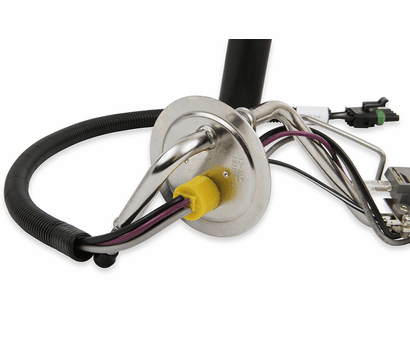

• This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminants This 1970-74 Dodge/Plymouth E Body Muscle Car EFI Fuel Pump modules are designed as a direct replacement for your factory pick-up and sending unit.
There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line, just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line.

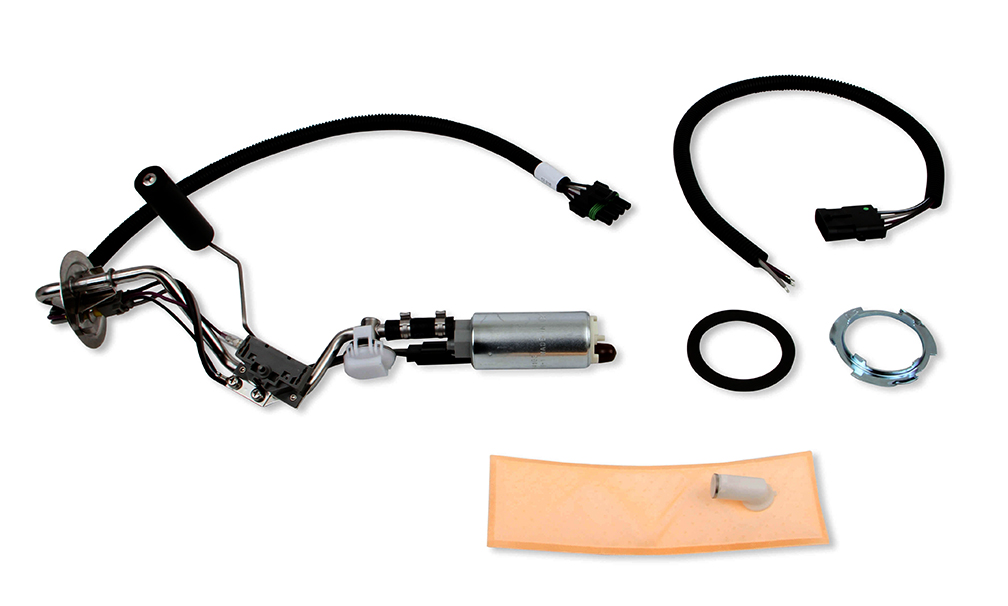

This Muscle Car EFI Module includes a 350 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.
Specs:
Free Flow LPH 350
Fuel Sending Unit Ohms 73-10 Ohms
Fuel Type Gasoline
Inlet Diameter (in) 5/16"
Make Dodge/Plymouth
Material Steel
Model E Body
Product Type Fuel Pump Module
Vent Size N/A
Warranty Limited 90 Day
