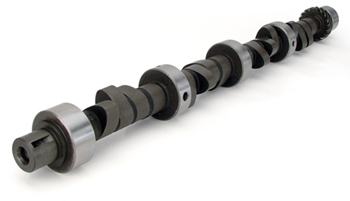

PRODUCT DESCRIPTION
Advertised Duration 270/270, Lift .468/.468
Cam Style:
Mechanical flat tappet
Basic Operating RPM Range:
1,800-5,800
Intake Duration at 050 inch Lift:
224
Exhaust Duration at 050 inch Lift:
224
Duration at 050 inch Lift:
224 int./224 exh.
Advertised Intake Duration:
270
Advertised Exhaust Duration:
270
Advertised Duration:
270 int./270 exh.
Intake Valve Lift with Factory Rocker Arm Ratio:
0.468 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio:
0.468 in.
Valve Lift with Factory Rocker Arm Ratio:
0.468 int./0.468 exh.
Lobe Separation (degrees):
110
Intake Valve Lash:
0.022 in.
Exhaust Valve Lash:
0.022 in.
Computer-Controlled Compatible:
No
Grind Number:
CRS 270S-10
Valve Springs Required:
Yes
Quantity:
Sold individually.
COMP Cams Magnum solid lifter camshafts are specifically designed for the street enthusiast looking for more power and that Pro Street sound. Whether your choice would be the 270s with low-speed torque and noticeable idle, or the 306s for larger cubic inch engines with tremendous high-rpm power and radical idle, one of these Magnum series cams will fit your engine's needs.
