PRODUCT DESCRIPTION
Advertised Duration 268/280, Lift .477/.480
Cam Style:
Hydraulic flat tappet
Basic Operating RPM Range:
1,600-5,800
Intake Duration at 050 inch Lift:
224
Exhaust Duration at 050 inch Lift:
230
Duration at 050 inch Lift:
224 int./230 exh.
Advertised Intake Duration:
268
Advertised Exhaust Duration:
280
Advertised Duration:
268 int./280 exh.
Intake Valve Lift with Factory Rocker Arm Ratio:
0.477 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio:
0.480 in.
Valve Lift with Factory Rocker Arm Ratio:
0.477 int./0.480 exh.
Lobe Separation (degrees):
110
Computer-Controlled Compatible:
No
Grind Number:
CRS XE268H-10
Valve Springs Required:
Yes
Quantity:
Sold individually.

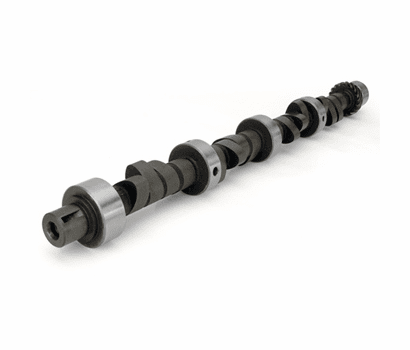

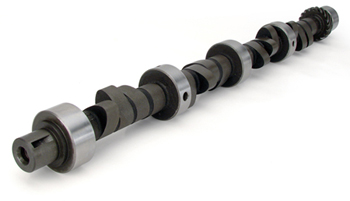

COMP Cams Xtreme Energy camshafts are built to take advantage of the latest cam technology, to provide maximum performance. Whether your use is off-roading, towing, or street performance, there is an Xtreme Energy cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers, while delivering increased engine vacuum.
