PRODUCT DESCRIPTION
Canister, Round, Oil Filled, Chrome, 40,000 V
Coil Wire Attachment:
Female/Socket
Coil Style:
Canister
Primary Resistance:
1.500 ohms
Coil Internal Construction:
Oil-filled
Coil Color:
Chrome
Maximum Voltage:
40,000 V
Turns Ratio:
115:1
Secondary Resistance:
10.60K ohms
Inductance:
6.4 mH
Peak Current:
7.2 amps
Spark Duration:
1.5 mS
Mounting Bracket Included:
No
Coil Wire Included:
No
Ballast Resistor Included:
No
Coil Shape:
Round
Diameter (in):
2.125 in.
Height (in):
6.000 in.
Quantity:
Sold individually.
Notes:
For use with the original Pertronix Ignitor ignition. Can also be used with other induction ignition systems.

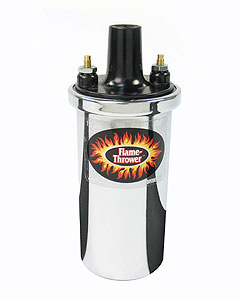

Upgrade from your stock coil to something with more wallop--like a PerTronix Flame-Thrower. Flame-Thrower coils deliver more than 40,000 V of spark energy to your plugs for fuller, more complete combustion. They're available in both 1.5 ohm and 3.0 ohm versions, with either oil-filled canisters, which keep their low-resistance windings secure and cool for reliable long-term performance, or epoxy-filled canisters for extra vibration protection. Flame-Throwers are available in chrome or black (epoxy, black only).
