PRODUCT DESCRIPTION
Ignition Box, Digital HP, Silver
Ignition Box Output:
Capacitive/Inductive discharge
Circuitry:
Digital
Rev Limiter:
Yes
Timing Retard:
One-stage
Data Acquisition:
No
CD Voltage Output to Coil:
530 V
Current Draw:
1.2 amps per 1,000 rpm
Spark Output (millijoules):
187 Millijoules
Minimum Operating Voltage:
8 V
Maximum Operating Voltage:
22 V
Length (in):
4.125 in.
Height (in):
1.625 in.
Width (in):
3.750 in.
Ignition Box Color:
Silver
Coil Included:
No
Warranty:
1-year
Quantity:
Sold individually.
Emissions:
California EO Approved
With their adjustable start retard, Digital HP boxes are ideal for street cruisers up through hard-starting, high-compression race engines. Don't let their size fool you; PerTronix Digital HP ignition boxes hold 30 percent more energy than competitors and are built for the long run.
Additional Features:
* Multiple spark all the way to redline
* RPM activated trigger
* Locking Molex connector
* Tachometer output lead

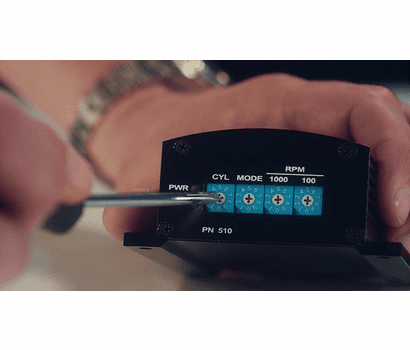

* Onboard diagnostics and tach calibration
