PRODUCT DESCRIPTION
Fits: Universal, Gasoline, Stock Configuration
Atomic EFI, Master Kit, Throttle Body, TPS, MAP, IAT, IAC, Power Module, Fuel Pump, Kit
Self Tuning:
Yes
User Tunable:
Yes
EGR:
No
Transmission Controller Included:
No
Injection Style:
Throttle body
Metering Style:
Speed density
Intake Manifold Included:
No
Fuel Rails Included:
Yes
Throttle Body Included:
Yes
Throttle Body Mounting Flange:
4-barrel square bore
Injectors Included:
Yes
Injector Size (lbs/hr):
80 lbs./hr.
Calibration Module Included:
Yes
ECM Included:
Yes
Wiring Harness Included:
Yes
Oxygen Sensor Included:
Yes
Fuel Pump Included:
No
Fuel Pressure Regulator Included:
No
Distributor Included:
No
MAP Sensor Included:
Yes
IAT Sensor Included:
Yes
TPS Sensor Included:
Yes
IAC Motor Included:
Yes
Quantity:
Sold as a kit.
CARB EO Number:
D-722 (pdf)
To see a list of qualifying vehicles, enter CARB EO Number D-722
Emissions:
California EO Approved

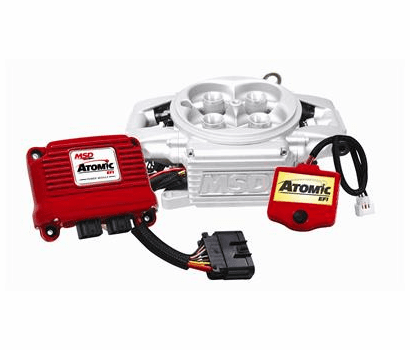

These MSD Atomic EFI fuel injection systems are the perfect choice for anyone planning on converting from carburetor to fuel injection. They include a throttle body, power module (with wideband oxygen sensor), and handheld controller. The throttle body features an integral ECU built on the side, incorporating the TPS, MAP, IAT, and fuel pressure sensors, all in one location. Fuel delivery is provided by four precision 80 psi injectors featuring a stainless steel ball and seat metering method for maximum internal sealing. They also use internal fuel rails, providing a sleek appearance and removing fitting connections where leaks can develop. Atop the Atomic EFIs are annular booster rings that deliver superior atomization of the best fuel mixture, ensuring the best possible fuel delivery. Best of all, the MSD Atomic EFI fuel injection systems bolt directly to any standard square bore carbureted intake manifold and accept the same linkage as most carburetors. The 1.75 in. diameter throttle inlets ride in precision roller bearings for a smooth pedal transition. The Atomic EFIs' unique TPS is a self-calibrating, non-contact sensor, which means that you don't have to worry about configuring it during setup. The included power module is a remote mounted piece that handles all of the high-current loads. MSD's CAN-Bus technology allows for a single, clean connection between these units and the throttle body mounted ECU. Control all of the MSD Atomic EFI fuel injection systems' functions with the hand-held device. Initial setup takes about five minutes, and you'll answer six questions about your specific engine. After the initial setup is complete, the device can provide you with engine data to help you keep your engine working properly. They also feature a removable micro-SD card to record and store data so that you can see what's going on with your engine.
