PRODUCT DESCRIPTION
Mr. Gasket waterproof relays are ideal for use on electric fuel pumps, water pumps, cooling fans, off-road lights, and any other application that is exposed to muddy or wet conditions.
This relay handles 40 amps momentary and 30 amps for continuous use. The pigtail harness has 7 inch long leads with heavy duty 12 & 18 gauge wire. The connector has the wires molded in rubber and a gasket for a leak proof seal.
Ideal for use on marine applications and vehicles that are power-washed out (Jeeps, 4x4 Trucks, UTV's, and dirt track race cars).
Features:

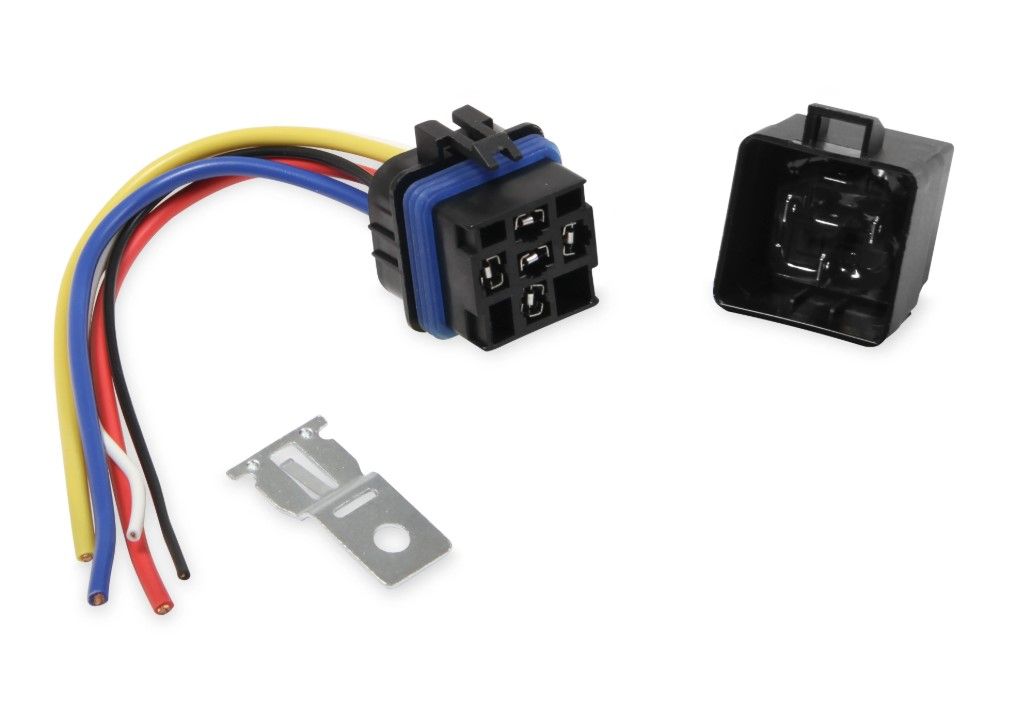

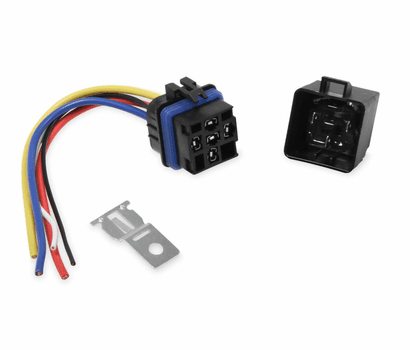

Waterproof relay w/ pigtail harness & sealed connector
40/30Amp 30 AMP continuous load & 40 AMP momentary
12V DC
Works in normally open or normally closed circuits
Pigtail wires are 7 long
Wire Gauge: (3) 12 gauge wires on blue (30 common), yellow (87 normally open), red (87a normally closed) (2) 18 gauge wires on black (85 ground) & white (86 +12V)
Metal mounting bracket can be mounted under-hood or just about any other location on vehicle
Ideal for use in: marine, dirt track cars, and off-road trucks & Jeeps
