PRODUCT DESCRIPTION
Fits: Hellcat Engine Swaps
When installing a Hellcat crate engine your your early Mopar, you will need a stronger regulator. The fuel systems operate at a higher pressure range.
Pressure Range (psi): 40-75
Regulator Style: Return
Regulator Location: Inline
Boost/Vacuum Reference Port: Yes
Boost/Vacuum Rise Ratio:1:1
Gauge Port: Yes
Inlet Quantity: Two
Regulator Inlet Size:-10 AN
Inlet Attachment: Female straight cut O-ring
Outlet Quantity: One
Regulator Outlet Size:-10 AN
Outlet Attachment: Female straight cut O-ring
Return Fitting Size:-6 AN
Return Attachment: Female straight cut O-ring
Fittings Included: No
Regulator Material: Aluminum
Regulator Finish: Red anodized
Rebuildable: Yes
Mounting Bracket Included: Yes
Quantity: Sold individually.

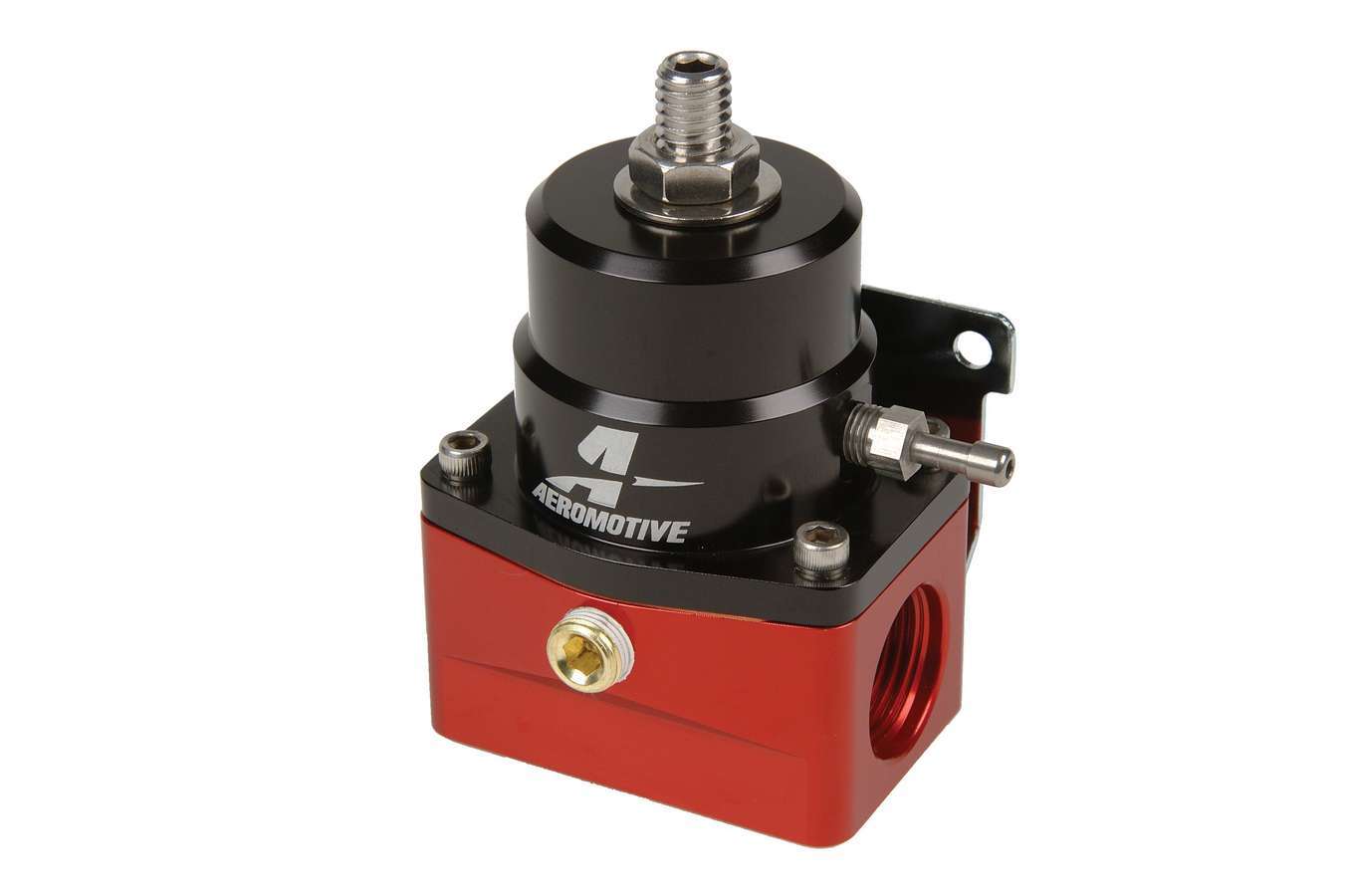

Intended for use with custom fuel rails, Aeromotive A1000 injected bypass fuel pressure regulators are specifically designed for use with their A1000 fuel pumps. These true billet alcohol-compatible regulators are beautifully finished with red and black anodized coatings or mirror like, show-quality nickel finish.
