PRODUCT DESCRIPTION
Fits: Universal
Fan Control, Thermostatic, Adjustable, 150 to 240 Degrees, Kit
Thermal Switch Style:
Adjustable fan control kit
Sending Unit Style:
Radiator probe
Sending Unit Included:
Yes
Fan Quantity:
Single
Adjustment Range (F):
150-240 degrees F
Relay Included:
Yes
Wiring Harness Included:
Yes
Manual Override Switch Included:
No
Air Conditioning Relay Included:
No
Quantity:
Sold as a kit.
Notes:
Heavy duty 40/60 amp relay. Kit is designed to activate up to a maximum draw of 25 amps. AC override circuit included.

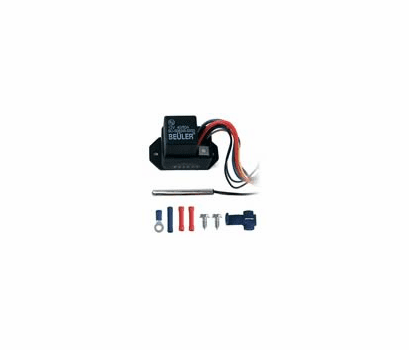

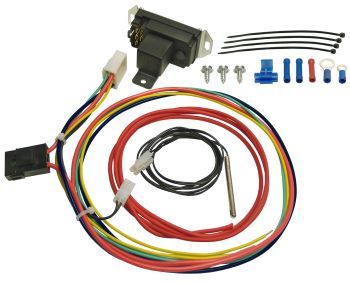

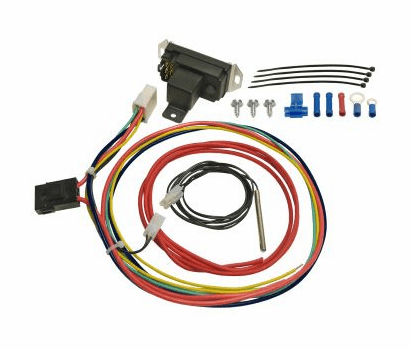

Derale Cooling Products adjustable electric fan controllers with push-in radiator probes are designed to activate up to 2 fans with a total maximum draw of 25 amps. These redesigned fan control kits adjust fan activation between 150 and 240 degrees F with turn-off preset at 10 degrees F lower than turn-on--making them well suited for racing as well as towing applications. The probe sensors fit in the fins of the radiator and kits include relay wire harness, electrical connectors, and A/C override circuit as well as ground circuit relay. Operate one 25 amp fan or two fans with a combined draw of 25 amps or less with the easy installation of Derale Cooling Products adjustable electric fan controllers.
