PRODUCT DESCRIPTION
Fits: Chrysler, 426-572 Hemi
Combustion Chamber Volume (cc):
170
Intake Runner Volume (cc):
245cc
Exhaust Runner Volume (cc):
105cc
Cylinder Head Style:
Bare
Cylinder Head Material:
Aluminum
Cylinder Head Finish:
Natural
CNC-Machined Combustion Chamber:
Yes
CNC-Machined Intake Runner:
No
CNC-Machined Exhaust Runner:
No
Intake Port Location:
Standard
Exhaust Port Shape:
Square
Exhaust Port Location:
Standard
Spark Plug Style:
Straight
Intake Valves Included:
No
Exhaust Valves Included:
No
Valve Springs Included:
No
Damper Spring Included:
No
Retainers Included:
No
Locks Included:
No
Valve Stem Seals Included:
No
Rocker Arm Studs Included:
No
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
No
Valve Seats Machined:
No
Steam Holes Drilled:
No
Oiling Style:
Through pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Quantity:
Sold individually.
Notes:
These heads are supplied with reamed and semi-finished valve stem guides. They will require finishing on the valve stem guides and a valve job before installation.

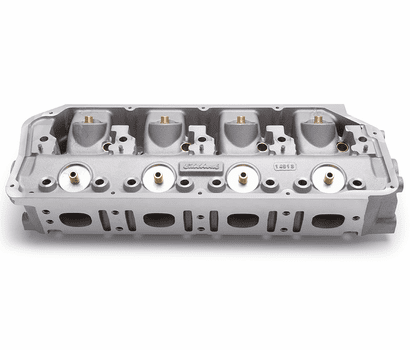

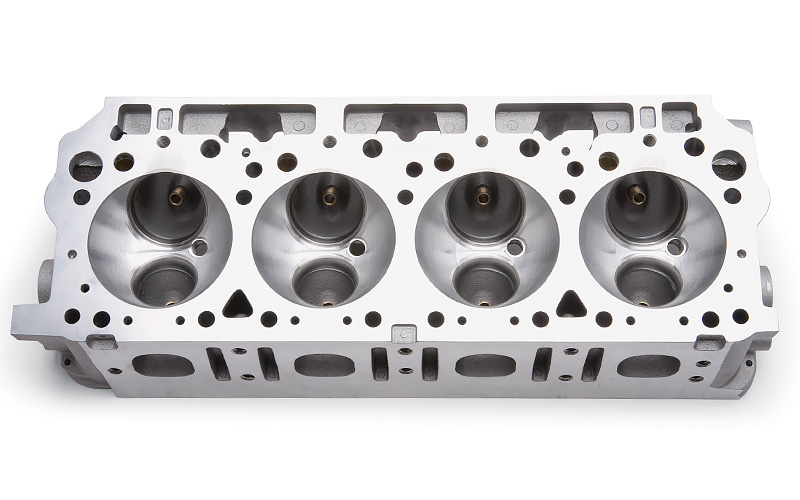

Edelbrock Victor Jr. CNC Chrysler cylinder heads are designed for high output Chrysler 426-572 HEMI engines. They feature fully CNC ported combustion chambers and CNC blended seats for optimal air flow performance. These heads also feature a revised exhaust valve angle to accommodate larger intake valves and feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
