PRODUCT DESCRIPTION
Fits: GEN 3 HEMI, EARLY 5.7L
Combustion Chamber Volume (cc):83
Intake Runner Volume (cc):202cc
Exhaust Runner Volume (cc):75cc
Cylinder Head Style:Assembled
Cylinder Head Material:Aluminum
Intake Port Shape:Square
Intake Valve Diameter (in):2.165 in.
Cylinder Head Finish:Natural
CNC-Machined Combustion Chamber:Yes
CNC-Machined Intake Runner:Yes
CNC-Machined Exhaust Runner:No
Combustion Chamber Style:Hemi
Intake Port Location:Standard
Exhaust Port Shape:D-port
Exhaust Port Location:Standard
Intake Valves Included:Yes
Exhaust Valves Included:Yes
Exhaust Valve Diameter (in):1.650 in.
Valve Springs Included:Yes
Maximum Valve Lift (in):0.630 in.
Outside Diameter of Outer Spring (in):1.066 in./1.300 in.
Damper Spring Included:No
Number of Springs Per Valve:Single
Retainers Included:Yes
Retainer Material:Steel
Locks Included:Yes
Lock Style:7 degree
Valve Stem Seals Included:Yes
Valve Stem Seal Style:Positive stop
Rocker Arm Studs Included:No
Rocker Arms Included:No
Rocker Arm Nuts Included:No
Guideplates Included:No
Valve Cover Mounting Style:Perimeter bolt
Accessory Bolt Holes Drilled:Yes
Intake Valve Angle:18.8
Exhaust Valve Angle:16.8
Valve Guides Included:Yes
Valve Guide Material:Manganese bronze
Valve Seats Machined:Yes
Valve Seat Machine Style:3-angle
Valve Seat Material:Ductile iron
Steam Holes Drilled:No
Oiling Style:Through head
Machined for O-Ring:No
Heat Crossover:No
Quantity:Sold individually.
Notes:Can be used on either driver side or passenger side of the block.
Special Attention:Valve springs are designed for use with a flat tappet camshaft.

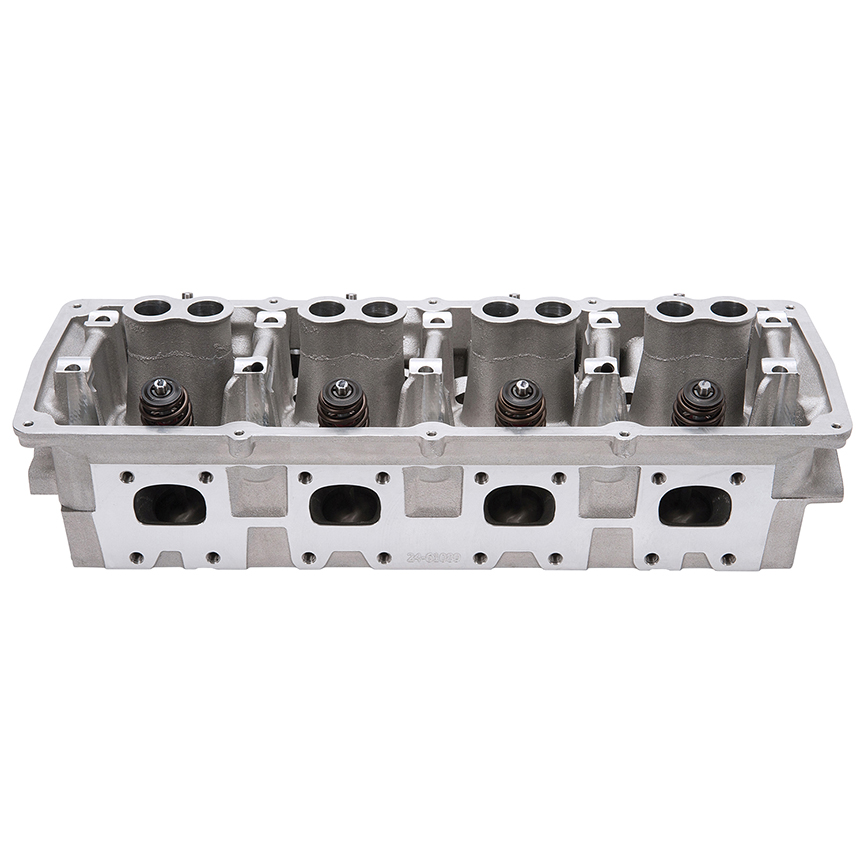

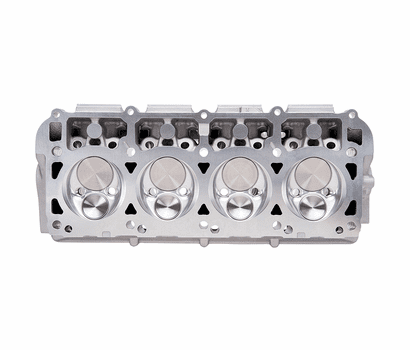

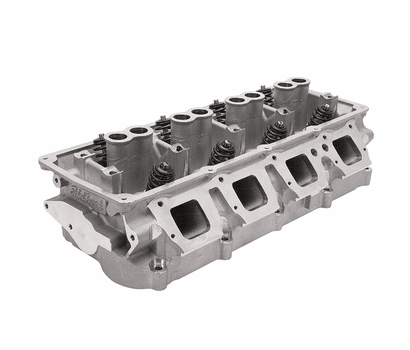

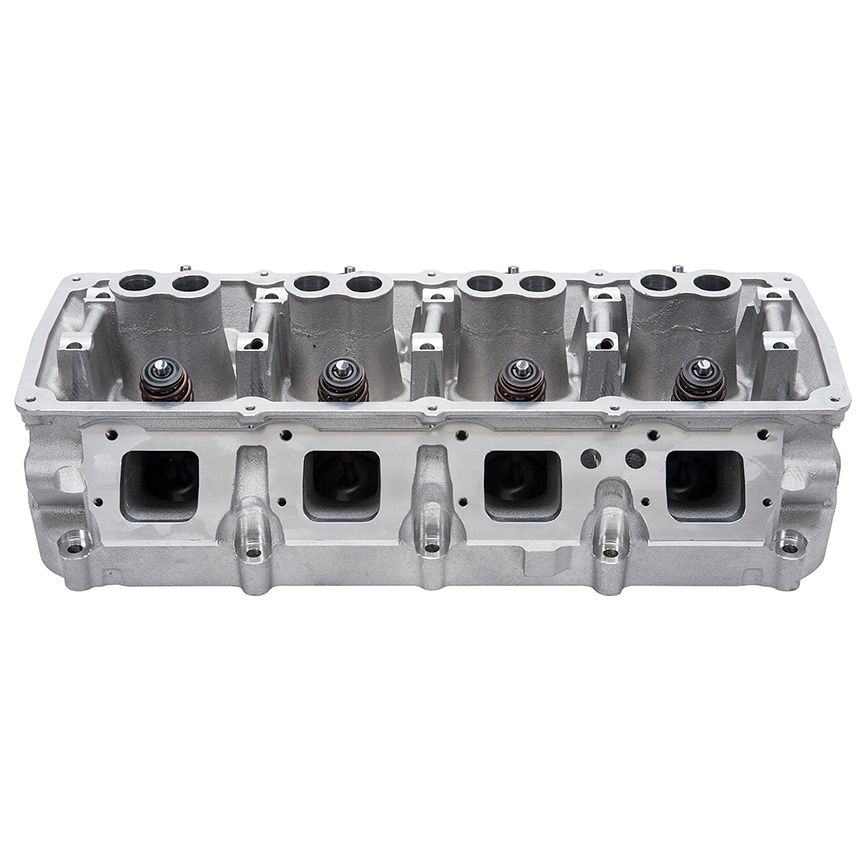

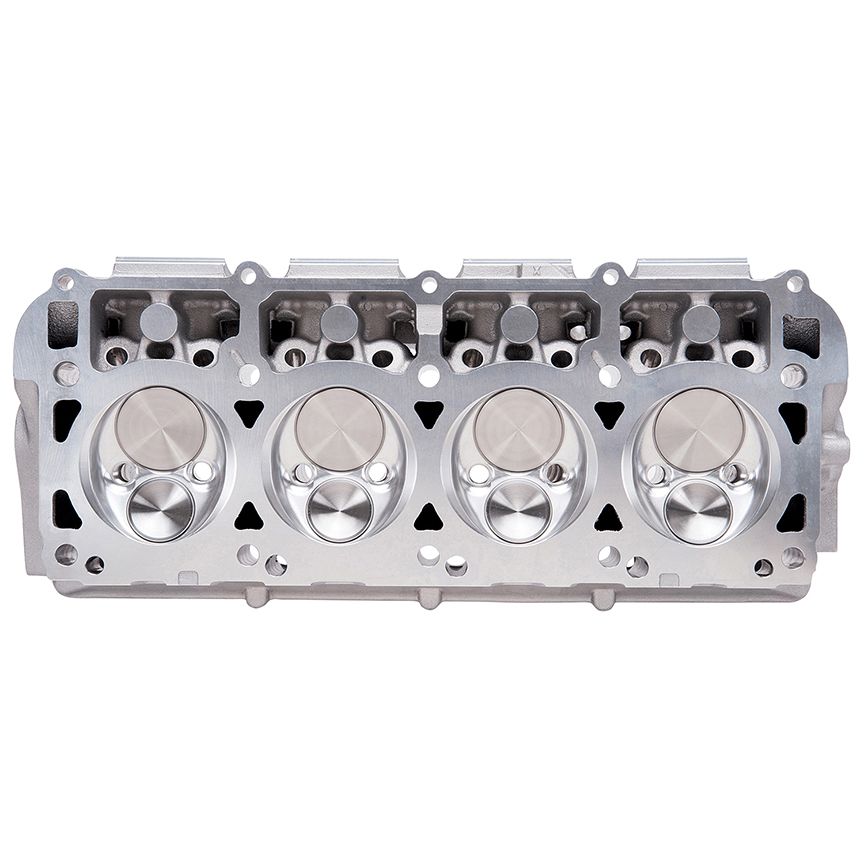

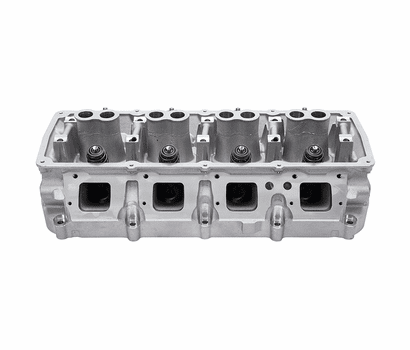

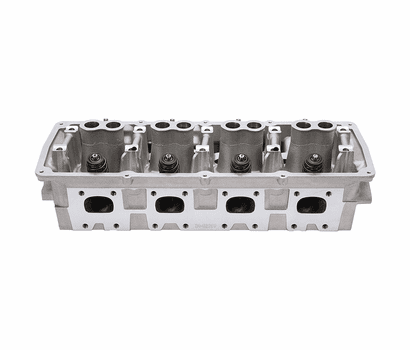

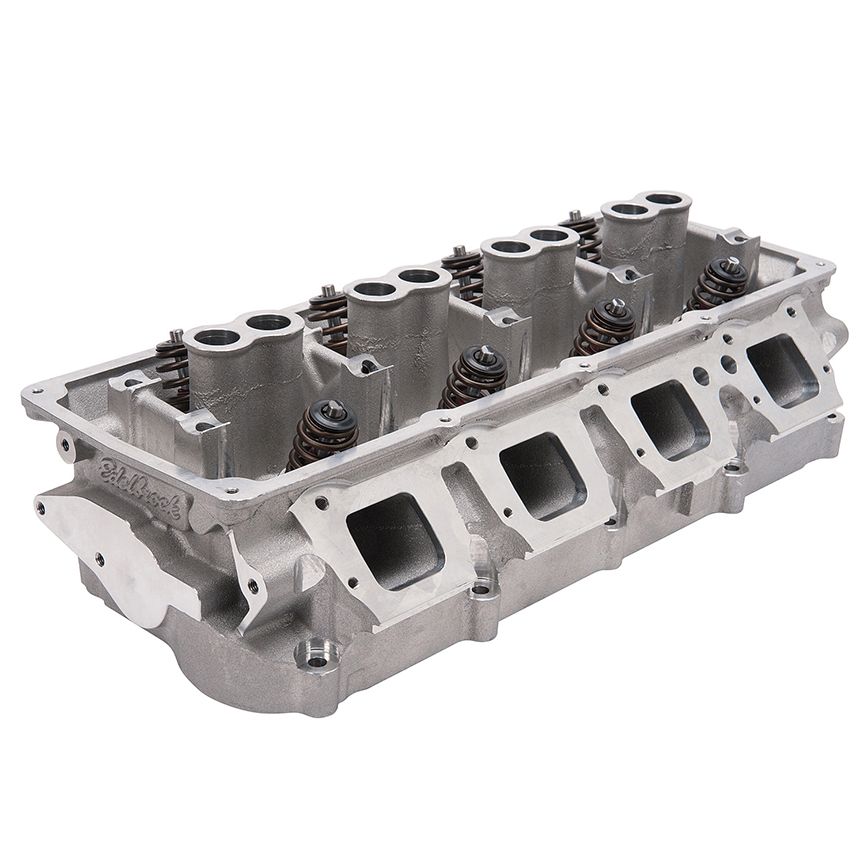

These Edelbrock Performer RPM Chrysler Gen III HEMI cylinder heads are bolt-on performance upgrades for Gen III HEMI engines. They are designed to fit with the stock intake manifold, exhaust manifold, valve cover, rockers, spark plugs, and accessories, as well as Hellcat components. The cylinder heads have been machined to be used on either the driver or passenger side of the block. They are cast from A356 aluminum and are heat-treated to T6 specifications. Edelbrock Performer RPM Chrysler Gen III HEMI cylinder heads feature fully CNC-machined combustion chambers, along with CNC-profiled bowls and port entries/exits for improved airflow. They also feature more material in the deck and reinforced combustion chambers for increased cylinder pressures. The rocker bosses have been reinforced for improved stability and strength, and extra material has been added around the intake and exhaust ports to allow for porting in racing applications. Both the intake and exhaust port flanges have remained in the factory location for use with OEM components. The intake and exhaust valves have been tipped away from the bore wall to unshroud the larger valves, while maintaining factory geometry. The seat diameters have also been increased for improved heat transfer and durability over stock.
