Edelbrock Hemi Dual Intake Manifold

The new dual quad manifold for the Gen II 426-572 HEMI

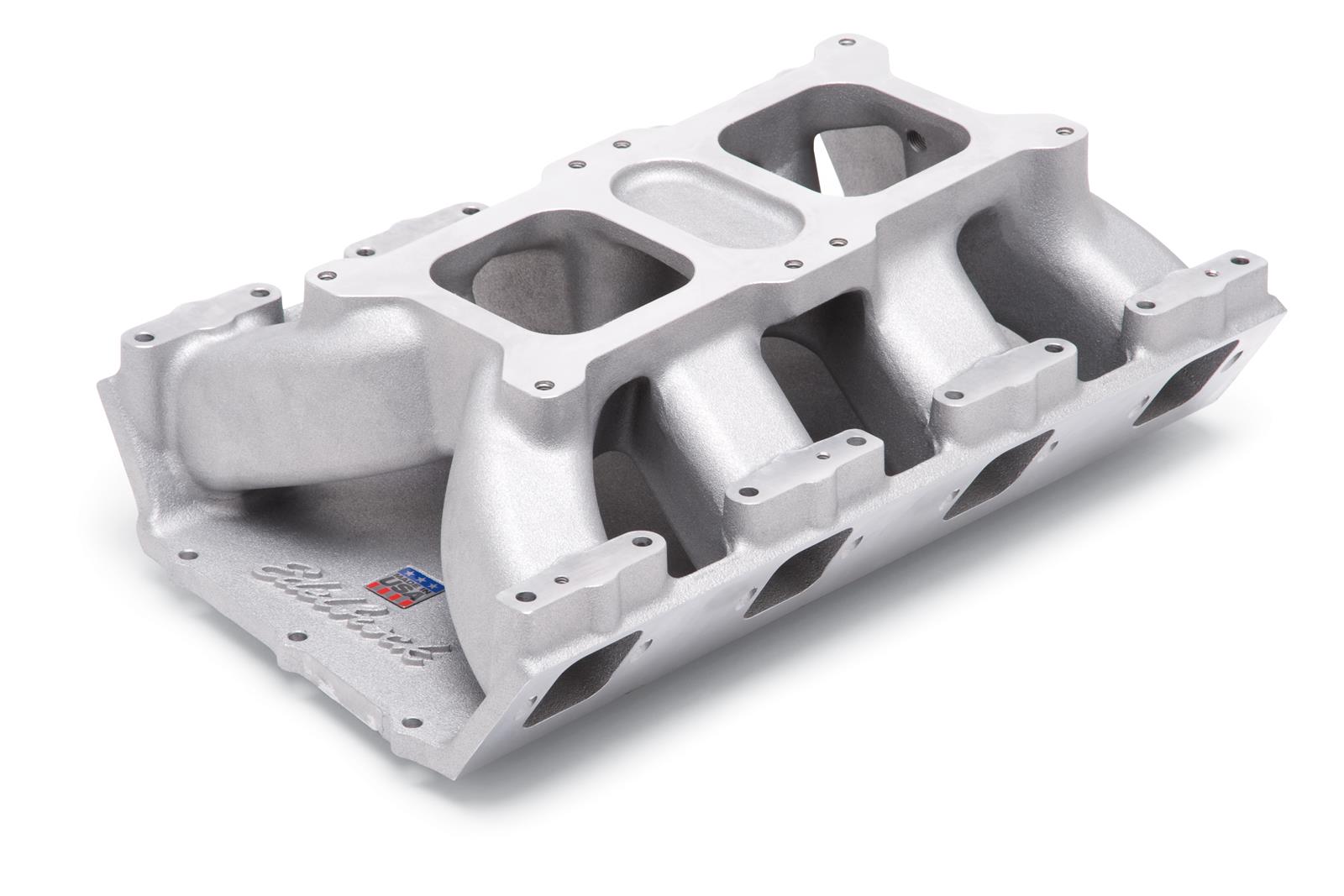

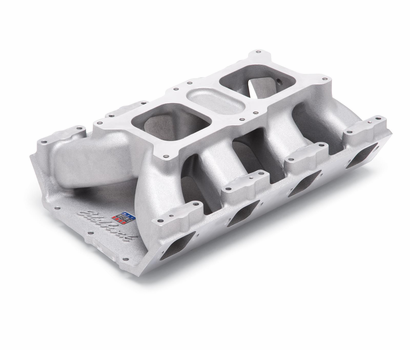

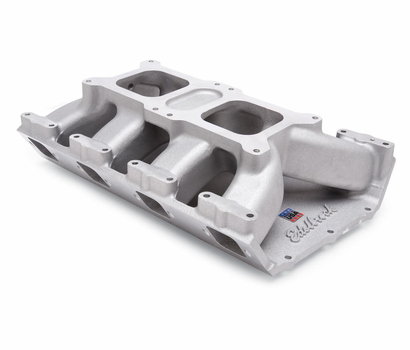

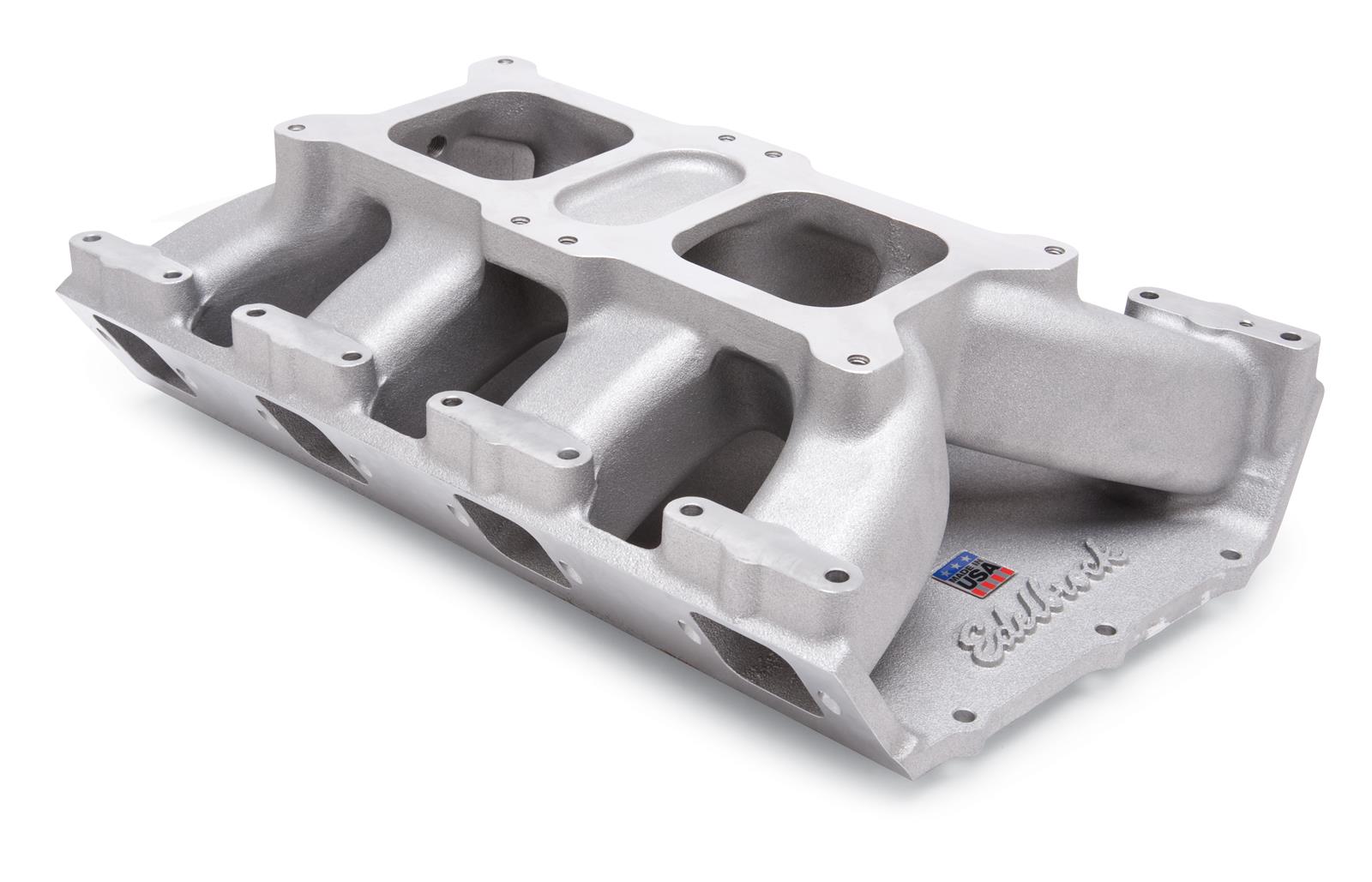

Manifold features a single plane design with dual 4150 style flange, an integrated valley pan and is available for either carbureted or EFI set-ups. The manifolds are compatible with stock style heads but are optimized for Edelbrock HEMI 426-572 cylinder heads. (Part #'s: 61169, 61189, 61175, 61179)

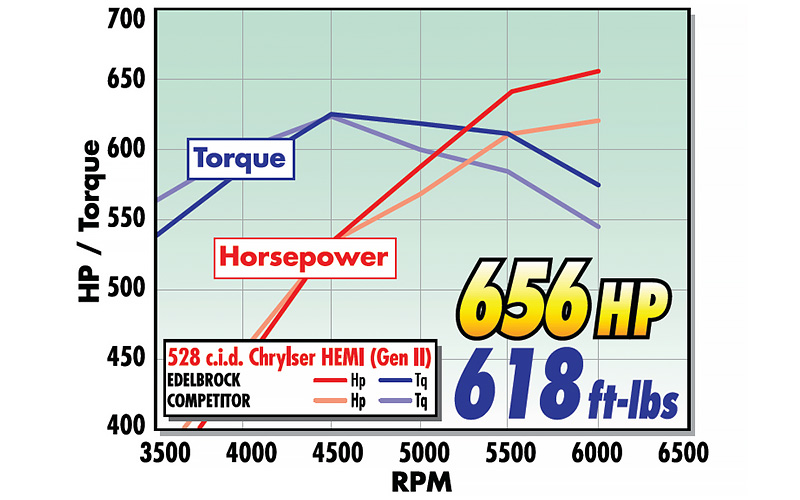

During testing this manifold outperformed the leading competitors by up to 30+ horsepower.

• Optimized for 2500-6500+ RPM range

• 4150 carburetor/Throttle body bolt pattern

• One-piece design with integrated valley pan

• Factory flange height

• Factory carb linkage locations

• Direct bolt-on to vehicles with shaker hoods

• Carb spacing identical to the Mopar Performance Dual Quad #P5153737

• Vacuum port located at back of plenum
