PRODUCT DESCRIPTION

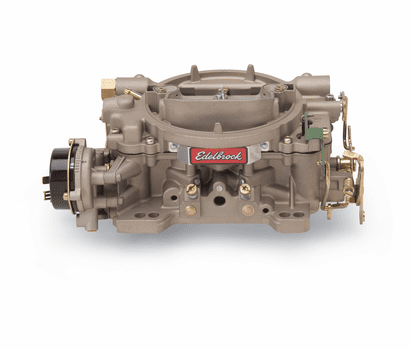

Marine, 600 cfm, 4-Barrel, Square Bore, Elec. Choke, Single Inlet, Gold Iridited,
CFM: 750
Fuel: Gasoline
New or Remanufactured: New
Number of Barrels: 4
Carburetor Flange: Square bore
Choke: Electric
Secondary Type: Mechanical
Fuel Inlet: Single
Carburetor Finish: Gold iridited
Ford Kickdown: No
Throttle Linkage Type: Universal
Carburetor Height (in): 3.250 in.
Quantity: Sold individually.
Notes: Mid marine performance. By design, this does not have a fast idle adjustment screw. Please see the charts and guides tab for a comparison of square bore vs spread bore.. Designed and calibrated from Edelbrock for use in marine applications, these Edelbrock carbs comply with U.S. Coast Guard safety standards.
Cast surfaces are protected by a Chromate conversion coating which is used as a corrosion inhibitor. Other features include modified bowl venting, specially designed throttle shafts, an accelerator pump seal, a 3/8 in. inverted flare fuel inlet fitting, tube in airhorn for fuel pump vent, a 5 1/8 in. flame arrestor flange, a universal throttle lever, and revised secondaries for improved transient performance. Also included with every Edelbrock carburetor are instructions for installation, set up, and basic tuning.
