PRODUCT DESCRIPTION
Fits: Mopar, Big Block

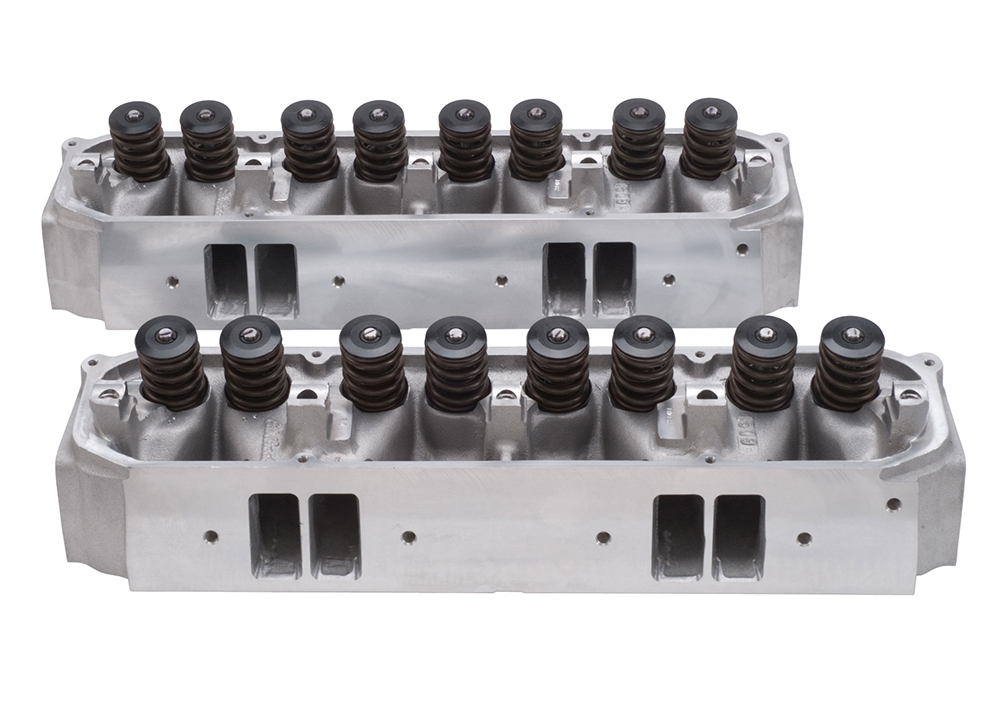

Aluminum, Assembled, 84cc Chamber, 210cc Intake Runner, Pair
Cylinder Head Style:
Assembled
Cylinder Head Material:
Aluminum
Cylinder Head Finish:
Natural

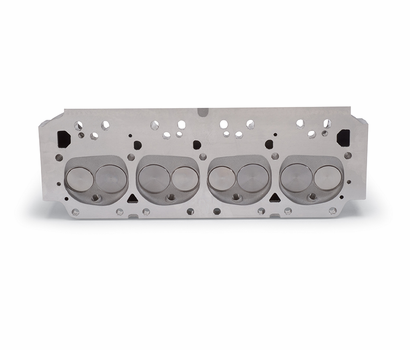

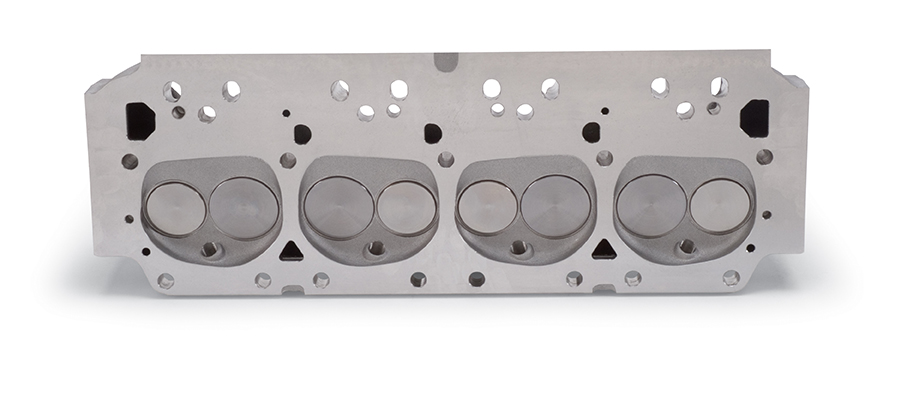

Combustion Chamber Volume (cc):
84
CNC-Machined Combustion Chamber:
No
Intake Runner Volume (cc):
210cc
Exhaust Runner Volume (cc):
70cc
CNC-Machined Intake Runner:
No
CNC-Machined Exhaust Runner:
No
Intake Port Location:
Standard

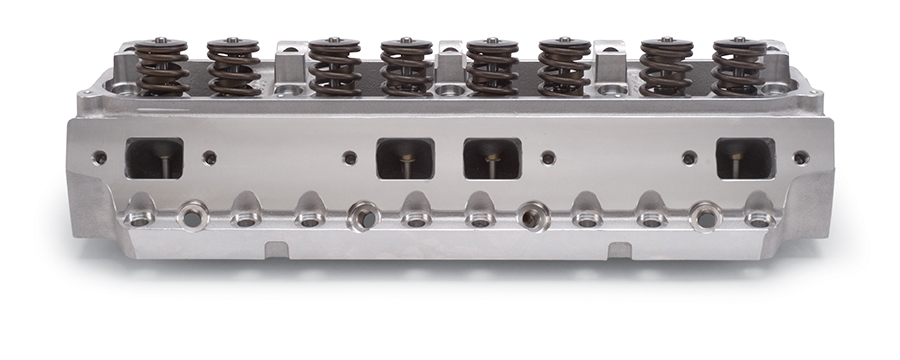

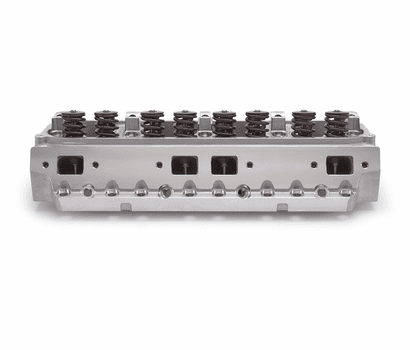

Exhaust Port Shape:
Square
Exhaust Port Location:
Standard
Spark Plug Style:
Angle
Intake Valves Included:
Yes
Intake Valve Diameter (in):
2.140 in.
Exhaust Valves Included:
Yes
Exhaust Valve Diameter (in):
1.810 in.
Valve Springs Included:
Yes
Maximum Valve Lift (in):
0.600 in.
Outside Diameter of Outer Spring (in):
1.550 in.
Damper Spring Included:
Yes
Number of Springs Per Valve:
Single
Retainers Included:
Yes
Retainer Material:
Steel
Locks Included:
Yes
Lock Style:
7 degree
Valve Stem Seals Included:
Yes
Valve Stem Seal Style:
Umbrella
Rocker Arm Studs Included:
No
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Valve Cover Mounting Style:
Perimeter bolt
Accessory Bolt Holes Drilled:
Yes
Intake Valve Angle:
15
Exhaust Valve Angle:
15
Valve Guides Included:
Yes
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Powdered metal
Steam Holes Drilled:
No
Oiling Style:
Through head
Machined for O-Ring:
No
Heat Crossover:
No
Quantity:
Sold as a pair.
Notes:
Designed for use with hydraulic flat tappet camshafts. The valve and seat combination is not recommended to be used with a hydraulic roller camshaft.

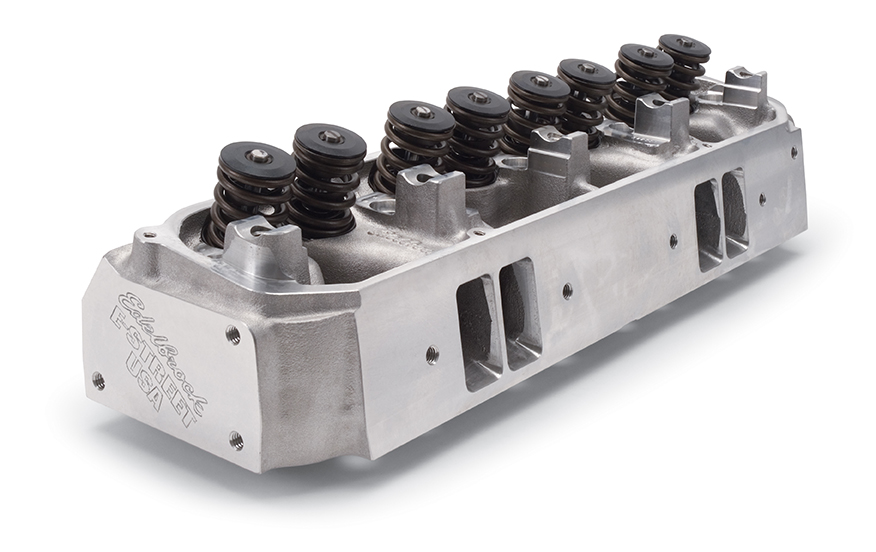

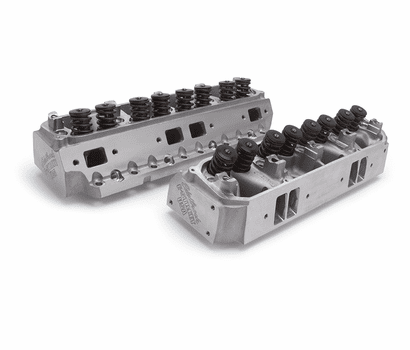

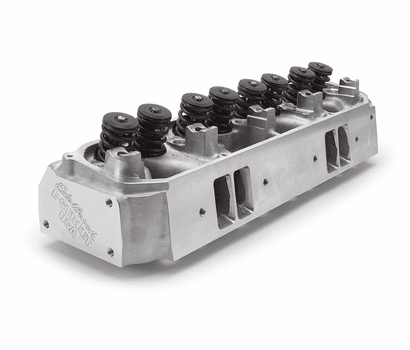

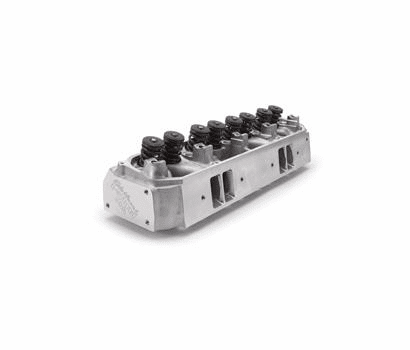

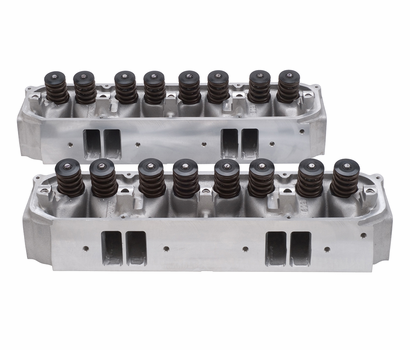

Are you looking for a set of entry-level street performance heads for your modern street rod, musclecar, or truck? These all-new Edelbrock E-Street cylinder heads are just the ticket. Manufactured in the USA by Edelbrock, these E-Street cylinder heads feature A356 aluminum castings that are heat-treated to T-6 specs for superior casting strength and quality. Their modern combustion chamber design helps to improve the combustion process and their larger-than-stock intake and exhaust ports help to move more air through your engine. These features improve an engine's efficiency, resulting in more horsepower and torque and improved mileage potential. All Edelbrock E-Street cylinder heads are assembled with manganese bronze valve guides, powder metal interlocking valve seats, and stainless steel one-piece valves with hardened valve tips. Edelbrock E-Street cylinder heads are ideal for entry level street performance engines.
