PRODUCT DESCRIPTION
Advertised Duration 282/290, Lift .520/.540

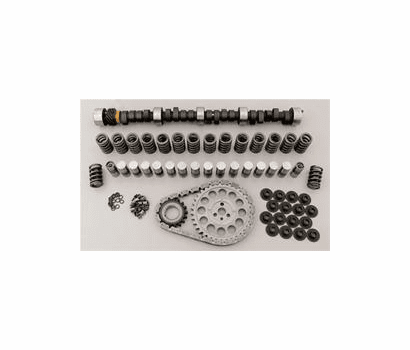

Cam/Lifters/Valvetrain, Mechanical Flat Tappet, Adv. Duration 282/290, Lift .520/.540, Mopar, 383-440, Kit
Cam Style:
Mechanical flat tappet
Basic Operating RPM Range:
2,500-6,500
Intake Duration at 050 inch Lift:
244
Exhaust Duration at 050 inch Lift:
252
Duration at 050 inch Lift:
244 int./252 exh.
Advertised Intake Duration:
282
Advertised Exhaust Duration:
290
Advertised Duration:
282 int./290 exh.
Intake Valve Lift with Factory Rocker Arm Ratio:
0.520 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio:
0.540 in.
Valve Lift with Factory Rocker Arm Ratio:
0.520 int./0.540 exh.
Lobe Separation (degrees):
110
Camshaft Gear Attachment:
1-bolt
Grind Number:
XS282S
Computer-Controlled Compatible:
No
Lifters Included:
Yes
Lifter Style:
Mechanical flat tappet
Valve Springs Included:
Yes
Outside Diameter of Outer Spring (in):
1.509 in.
Retainers Included:
Yes
Locks Included:
Yes
Valve Stem Seals Included:
Yes
Timing Chain and Gears Included:
Yes
Timing Chain Style:
Double roller
Assembly Lubricant Included:
Yes
Pushrods Included:
No
Rocker Arms Included:
No
Gaskets Included:
No
Valve Springs Required:
No
Quantity:
Sold as a kit.
COMP Cams Xtreme Energy cam and lifter kits are built to take advantage of the latest cam technology and provide maximum performance. Whether your use is off-roading, towing, or street performance, there are Xtreme Energy options available for you. By using an aggressive lobe profile, they provide better throttle response and more top-end horsepower than equivalent kits from other manufacturers, while delivering increased engine vacuum. Order the model designed for your vehicle and engine application.
