PRODUCT DESCRIPTION
Fits: 1970-72 Duster & Dart (22" Core)
CHAMPION CORE: 3-Row
RADIATOR FLOW: DOWN FLOW
CORE DIM 17" (H) x 22 1/2" (W)
OVERALL 21 7/8" (H) x 25" (W)
HOSE LOCATIONS: IN: Driver / OUT: Passenger
HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4
TRANS COOLER: 1/8-27NPT
MOUNTING TYPE: BRACKET MOUNT

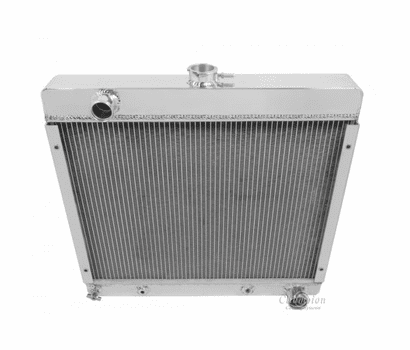

Champion Cooling System Champion Core Radiators have three rows of 5/8 in. tubes that provide cooling capacity for approximately 600 to 800+ horsepower applications. Each radiator is manufactured at an ISO-certified facility to the highest standards and craftsmanship. All Champion Radiators are built with 100% welded seams brazed core technology and absolutely no epoxy.

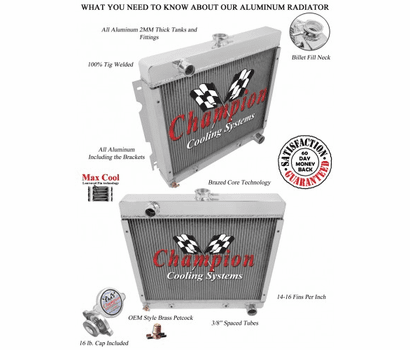

Features
•All-Aluminum Design with 3 Rows of 5/8 in. Tubing
•Welded Seams Brazed Core Technology (No epoxy)
•Approximately 600 to 800+ Horsepower Cooling Capacity
•Standard Radiator Cap Included
