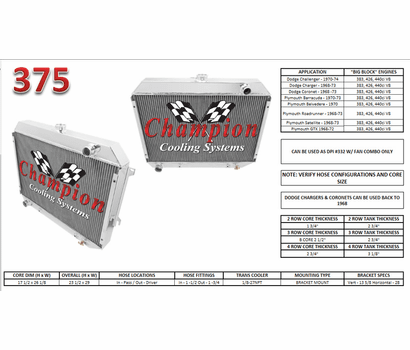

PRODUCT DESCRIPTION
Fits: 1968-73 B-Body & 1970-74 E-Body (26" Core)
Champion Core 2-Row
RADIATOR FLOW: DOWN FLOW
CORE DIM 17-1/2" (H) x 26-1/8"(W)
OVERALL 23-1/2" (H) x 29" (W)
HOSE LOCATIONS: IN: Driver / OUT: Passenger
HOSE FITTINGS: IN: 1 1/2 - OUT: 1 3/4
TRANS COOLER: 1/8-27NPT
MOUNTING TYPE: BRACKET MOUNT
Champion Cooling System Economy Core Radiators have two rows of 3/4 in. tubes that provide cooling capacity for approximately 400 to 600+ horsepower. Each radiator is manufactured at an ISO-certified facility to the highest standards and craftsmanship. All Champion Radiators are built with 100% welded seams and brazed core technology with absolutely no epoxy.
Features
•All-Aluminum Design with 2 Rows of 3/4 in. Tubing
•Welded Seams Brazed Core Technology (No epoxy)
•Approximately 400 to 600+ Horsepower Cooling Capacity
•Standard Radiator Cap Included
