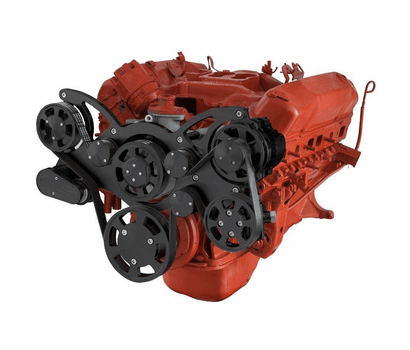

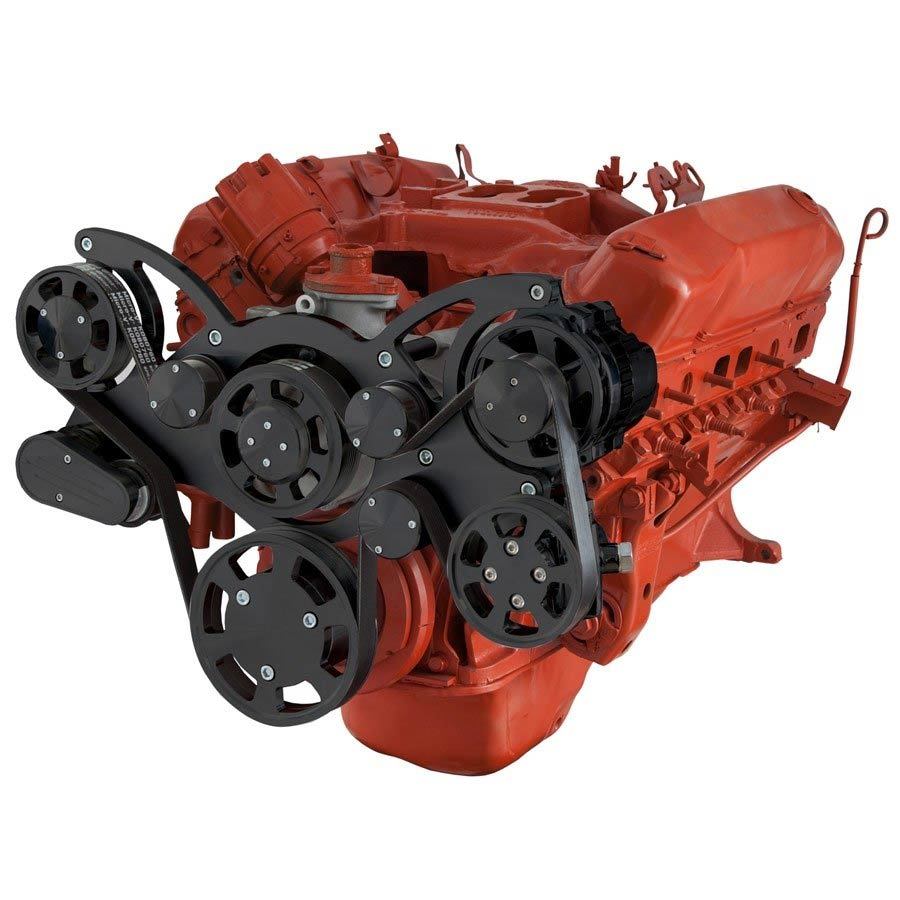

Stealth Black Big Block Chrysler 383 - 440 Serpentine System
Power Steering and Alternator
All Inclusive WRAPTORTM 8 Track Serpentine System for Big Block Chrysler engines with 140 Amp alternator and GM Type 2 Power Steering Pump. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
All Inclusive Kit Includes:
- High Flow Aluminum Water Pump
- 140 Amp Black 1-Wire CS130 Alternator
- Plated Aluminum GM Type II Power Steering Pump
- Remote Mount Reservoir with Bracket
- Gates Premium Green Strip 8 Rib Belt
- Water Pump Pulley & Cover
- Crank Pulley
- Crank Pulley Spacer
- Alternator Pulley & Cover
- Power Steering Pulley
- One Piece Billet Aluminum Bracket
- AC Delete Idler Pulley & Bracket
- Universal alternator fan
Application Notes:
- Upgrade to AC Only Requires Compressor Purchase.
- Works with either Mechanical or Electric fuel Pump
- Works with either Mechanical or Electric fan (may require long fan spacer)
- Works with either Short or Tall Deck Engines
- Requires Lower Radiator Hose on Driver Side
- Requires capped heater bypass
- Power Steering Lines from pump to reservoir not included
- Hydroboost kit available ($275 option)
If ordering without accessories, please call 651.356.8593 before ordering and see the requirements below:
- Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
- Power Steering Pump - GM Type II Pump
- Water Pump - 5.7" Tall, Clockwise Rotation, 5/8" Pilot and Lower Radiator Hose on Driver Side
