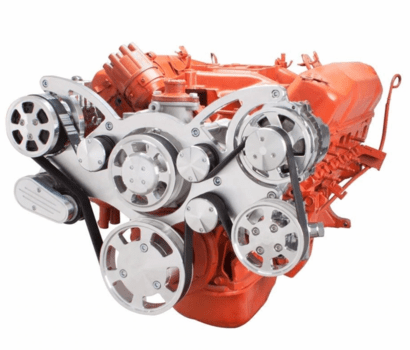

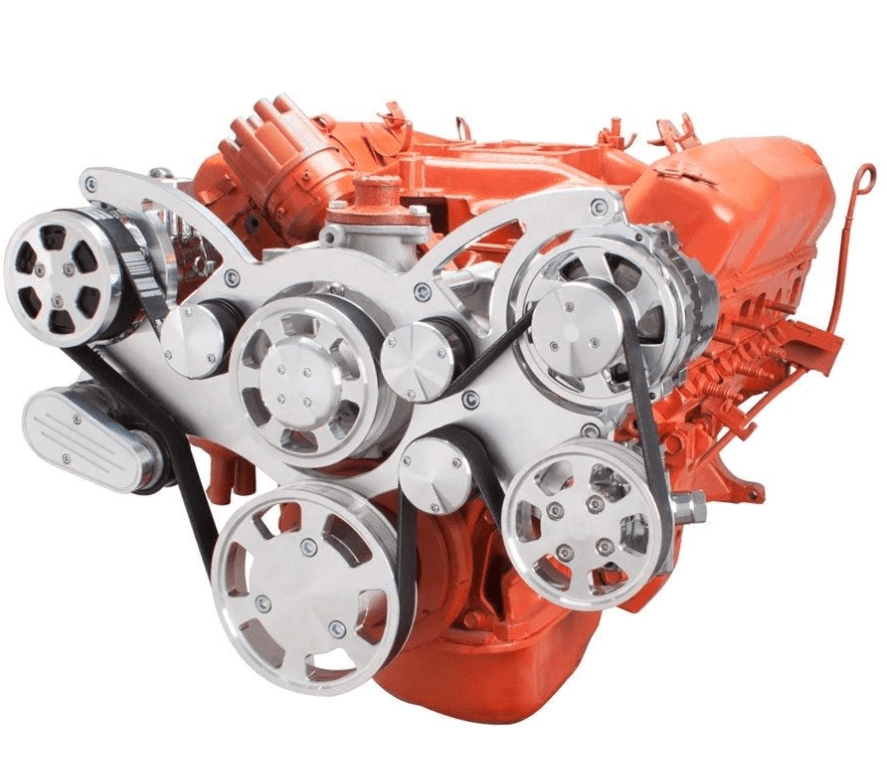

Big Block Chrysler 383, 400, 426 and 440 Serpentine Conversion Kit
Air Conditioning, Power Steering and Alternator
All Inclusive WRAPTORTM 8 Track Serpentine System for Chrysler Big Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
All Inclusive Kit Includes:
- High Flow Aluminum Water Pump
- 140 Amp Chrome 1-Wire CS130 Alternator
- Chrome Plated AC Compressor
- AC Compressor Clutch Cover - Polished Billet Aluminum
- Chrome Plated Aluminum GM Type II Power Steering Pump
- Remote Mount Reservoir with Bracket - Polished Billet Aluminum
- Gates Premium Green Strip 8 Rib Belt
- Water Pump Pulley & Cover - Polished Billet Aluminum
- Crank Pulley - Polished Billet Aluminum
- Crank Pulley Spacer - Polished Billet Aluminum
- Alternator Pulley & Cover - Polished Billet Aluminum
- Power Steering Pulley - Polished Billet Aluminum
- One Piece Billet Aluminum Bracket - Polished Billet Aluminum
- Universal Alternator Fan - Polished Billet Aluminum
Application Notes:
- Works with either Mechanical or Electric fuel Pump
- Works with either Mechanical or Electric fan (may require long fan spacer)
- Power Steering Lines from pump to reservoir not included
- Hydroboost kit available ($275 option)
If ordering without accessories, please call 651.356.8593 before ordering and see the requirements below:
- Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
- Power Steering Pump - GM Type II Pump
- Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
- Water Pump - 5.7" Tall, Clockwise Rotation, 5/8" Pilot and Lower Radiator Hose on Driver Side
