PRODUCT DESCRIPTION
Advertised Duration 294/306, Lift .519/.524
Cam Style:
Hydraulic flat tappet
Basic Operating RPM Range:
2,800-6,800
Intake Duration at 050 inch Lift:
250
Exhaust Duration at 050 inch Lift:
256
Duration at 050 inch Lift:
250 int./256 exh.
Advertised Intake Duration:
294
Advertised Exhaust Duration:
306
Advertised Duration:
294 int./306 exh.
Intake Valve Lift with Factory Rocker Arm Ratio:
0.519 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio:
0.524 in.
Valve Lift with Factory Rocker Arm Ratio:
0.519 int./0.524 exh.
Lobe Separation (degrees):
110
Camshaft Gear Attachment:
1-bolt
Computer-Controlled Compatible:
No
Grind Number:
CRB XE294H-10
Valve Springs Required:
Yes
Quantity:
Sold individually.
Notes:
Single-bolt camshaft.

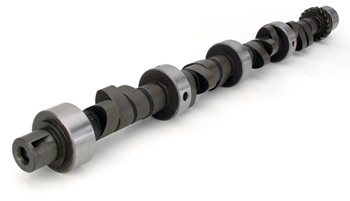

COMP Cams Xtreme Energy camshafts are built to take advantage of the latest cam technology, to provide maximum performance. Whether your use is off-roading, towing, or street performance, there is an Xtreme Energy cam available for you. By using an aggressive lobe profile, these cams provide better throttle response and more top-end horsepower than equivalent cams from other manufacturers, while delivering increased engine vacuum.
