PRODUCT DESCRIPTION
Advertised Duration 295/307, Lift .564/.564
Cam Style:
Hydraulic flat tappet
Basic Operating RPM Range:
3,000-6,500
Intake Duration at 050 inch Lift:
251
Exhaust Duration at 050 inch Lift:
257
Duration at 050 inch Lift:
251 int./257 exh.
Advertised Intake Duration:
295
Advertised Exhaust Duration:
307
Advertised Duration:
295 int./307 exh.
Intake Valve Lift with Factory Rocker Arm Ratio:
0.564 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio:
0.564 in.
Valve Lift with Factory Rocker Arm Ratio:
0.564 int./0.564 exh.
Lobe Separation (degrees):
110
Camshaft Gear Attachment:
1-bolt
Computer-Controlled Compatible:
No
Grind Number:
XE295HL
Valve Springs Required:
Yes
Quantity:
Sold individually.
Notes:
Single-bolt camshaft.

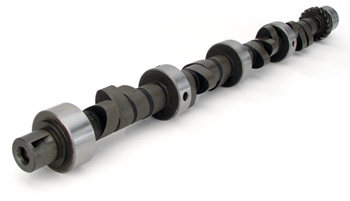

These Xtreme Energy Hi-Lift camshafts from COMP Cams are designed to take advantage of the latest improvements in valvetrain components, and the newest developments in camshaft design. The aggressive lobe design of these cams produces better throttle response, and their high-lift design gives extra lift for top-end horsepower.
