Mopar Compact Tandem M/C Kit with Combination Valve 1.00” Bore Chrome Powder Coat

1.00” Bore Chrome P-Coat

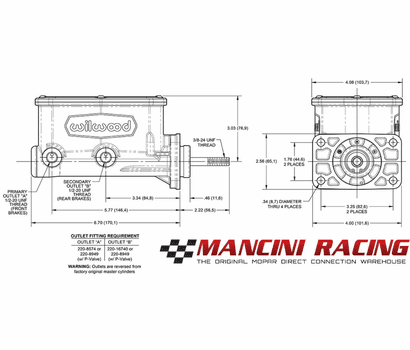

Mopar 4 Bolt Flange Compact Tandem Master Cylinder Kits - Complete kits include an adjustable combination proportioning valve, pre-bent lines, mounting bracket, and brake light switch. Master Cylinder Dimensions

Bore Size 1.00"

Area (in²) 0.780

Stroke 1.10

Volume (cu in)

Master Cylinder Description

Type Tandem Outlet

Outlets 2

Material Aluminum

Finish Chrome P-coat

Reservoir

Res Type Integral

Res Size (oz) 7.8 / 4.7 Res Size (cu in) 14.0 / 8.5

Wilwood now makes a performance master cylinder with a flange specifically for Mopar's unique four bolt pattern. The rectangular mounting flange of our Mopar Compact Tandem master cylinder matches the A-body, B-body and the E-body firewall mounts in the 1960's and 70's. Available in 15/16", 1.00" and 1-1/8" bore sizes without pushrod, 15/16"" and 1.00 with pushrod and Mopar style eyelet. Available in either a Black Powder coat finish or a glossy Chrome P-coat to complement any engine bay. These kits are available that include a combination valve with a hydraulic brake light switch, adjustable proportioning valve, bracket, and plumbing.
